SH.05Investment Casting13 models

Engineered around your process

Slurry Tank

Controlled ceramic-slurry mixing for stable, repeatable shell coating.

Request a quote Talk to engineering

Configuration: Compact ST / LT heavy-duty
Diameter: 600–1,600 mm
Depth: 600–1,500 mm
Tank construction: Stainless steel

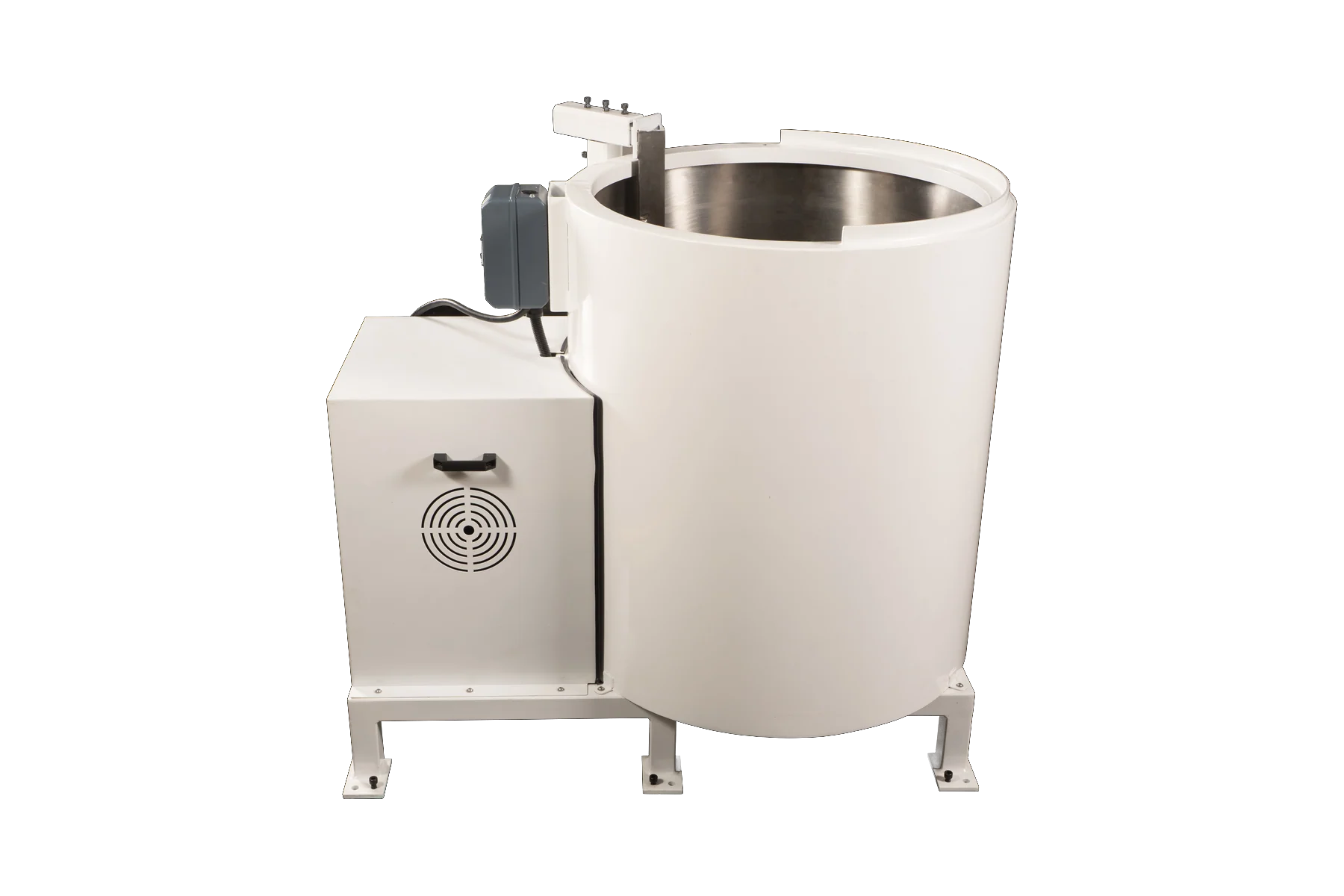

View 1 of Slurry Tank

01 / 02

Product mediaSelect a view

01 / Overview

Engineered for repeatable production.

Enclosed stainless-steel slurry tank available in compact and heavy-duty configurations, with adjustable mixing, safe access and straightforward cleaning for continuous shell-room operation.

Shelling Solutions

02 / Product range

Explore equipment for this process stage.

Compare the available equipment and open any product for its detailed configuration.

Shelling Solutions

Model / equipment	Primary specification	Control / configuration	Details
High Shear MixerSH.01	Standard speed35–110 rpm	Standard speed35–110 rpm	View model
Rotary Rainfall SanderSH.02	SpeedFully variable	SpeedFully variable	View model
Fluidized Bed SystemSH.03	Diameter600–1,500 mm	Diameter600–1,500 mm	View model
Wash, Rinse & Pre-Wet TanksSH.04	Diameter600–1,600 mm	Diameter600–1,600 mm	View model
Slurry TankSH.05 · Current model	ConfigurationCompact ST / LT heavy-duty	OperationLocal / remote start	Selected
Automated Shelling SolutionSH.06	SoftwareWindows based	SoftwareWindows based	View model
Shell Drying ConveyorSH.07	OperationContinuous · forward / reverse	OperationContinuous · forward / reverse	View model
Stucco ElevatorSH.08	FeedGround-level hopper	ControlFixed / variable speed	View model
Vertical SanderSH.09	FlowMulti-stage controlled rainfall	FlowMulti-stage controlled rainfall	View model
Slurry Preparation TankSH.10	TankST / LT stainless-steel series	ControlFixed / programmable PLC	View model
Shell HangersSH.11	ConfigurationSingle / multi-position	ConfigurationSingle / multi-position	View model
IC-Series Shell Handling RobotSH.12	Payload130–2,300 kg	Payload130–2,300 kg	View model
Shell Handling Robot GripperSH.13	ActuationPneumatic	ActuationPneumatic	View model

Final model, utilities, tooling and safety package are confirmed against the approved project requirement.

03 / Key features

Built around the process.

Compact ST and heavy-duty LT configurations

Adjustable mixing blades

Detachable top cover

Fully enclosed working area

Stainless-steel tank with rigid mild-steel support

Fixed or variable-speed mixer control

Local or remote start

Slurry-level monitoring option

Water-cooled and custom paddle options

04 / Applications

Where this machine fits.

Typical use cases for this platform. Tooling, handling and controls are engineered around the approved production requirement.

Application 01Primary & back-up slurry rooms

05 / Technical specifications

Complete published machine details.

Compare published capacity, controls, utilities and available options in one structured view. The source status is shown below; final configuration is confirmed against the approved project datasheet.

Verified source data

01
Models: 16
Parameters: 01
Data groups

Published technical details

Verified model data16 parameters

Official product page

01Published configuration

All model values shown below

Technical parameter	Model 01Published configuration
01Configuration	Compact ST / LT heavy-duty
02Diameter	600–1,600 mm
03Depth	600–1,500 mm
04Tank construction	Stainless steel
05Support structure	Rigid mild steel
06Mixing arrangement	Fixed or adjustable paddle with rotating tank
07Mixer control	Fixed / variable speed
08Operation	Local / remote start
09Enclosure	Fully enclosed working area
10Maintenance access	Detachable top cover
11Safety options	Edge covers and safety guards
12Magnetic cover	Available
13Lid system	Manual or automatic
14Slurry-level control	Monitoring and control available
15Temperature control	Water-cooled paddle available
16Large-tank paddle	Custom design above 1,400 mm

Configuration

Published configuration: Compact ST / LT heavy-duty

Diameter

Published configuration: 600–1,600 mm

Depth

Published configuration: 600–1,500 mm

Tank construction

Published configuration: Stainless steel

Support structure

Published configuration: Rigid mild steel

Mixing arrangement

Published configuration: Fixed or adjustable paddle with rotating tank

Mixer control

Published configuration: Fixed / variable speed

Operation

Published configuration: Local / remote start

Enclosure

Published configuration: Fully enclosed working area

Maintenance access

Published configuration: Detachable top cover

Safety options

Published configuration: Edge covers and safety guards

Magnetic cover

Published configuration: Available

Lid system

Published configuration: Manual or automatic

Slurry-level control

Published configuration: Monitoring and control available

Temperature control

Published configuration: Water-cooled paddle available

Large-tank paddle

Published configuration: Custom design above 1,400 mm

Configuration note: These details are cross-checked against the published Modtech product page and supplied source documents. Final values and included features may change with the approved machine configuration; contact Modtech Sales for the project datasheet.
