Manual Wax Injection Machine
Operator-controlled wax injection for flexible pattern production.
- Operation
- Manual / operator controlled
- Control
- Machine-mounted panel
- Wax supply
- Integrated unit
- Configuration
- Application specific
View 1 of Manual Wax Injection Machine01 / Overview
Engineered for repeatable production.

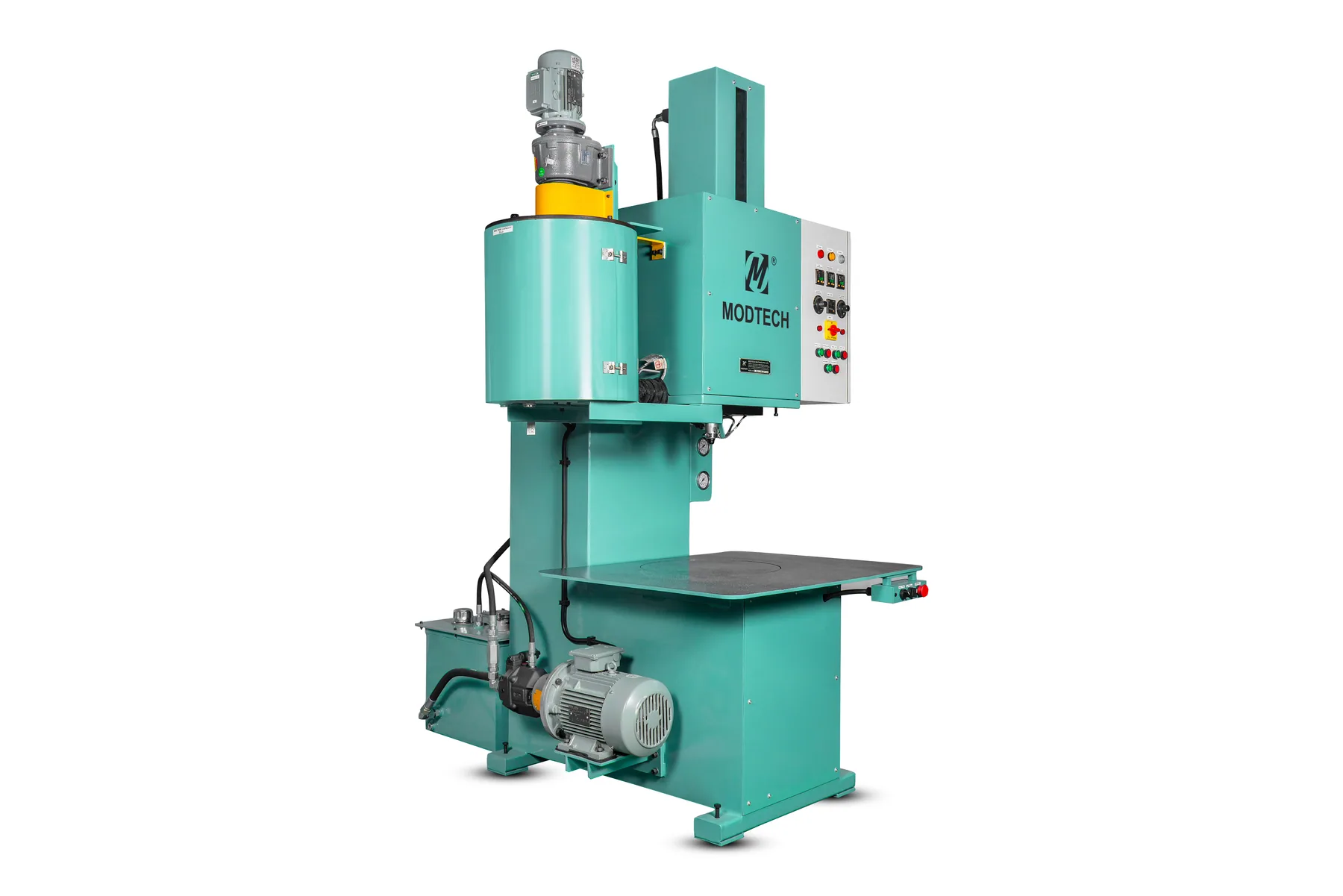

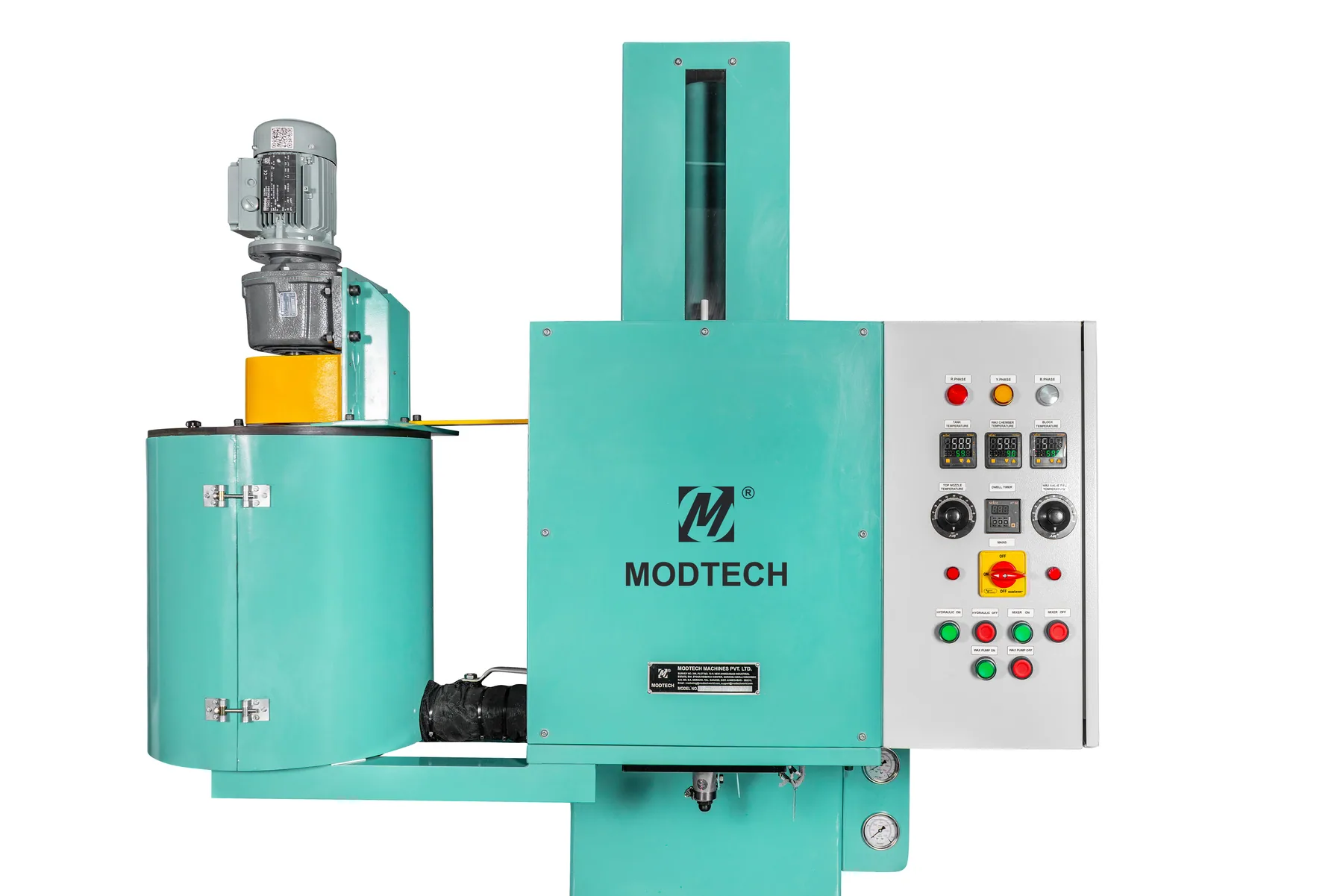

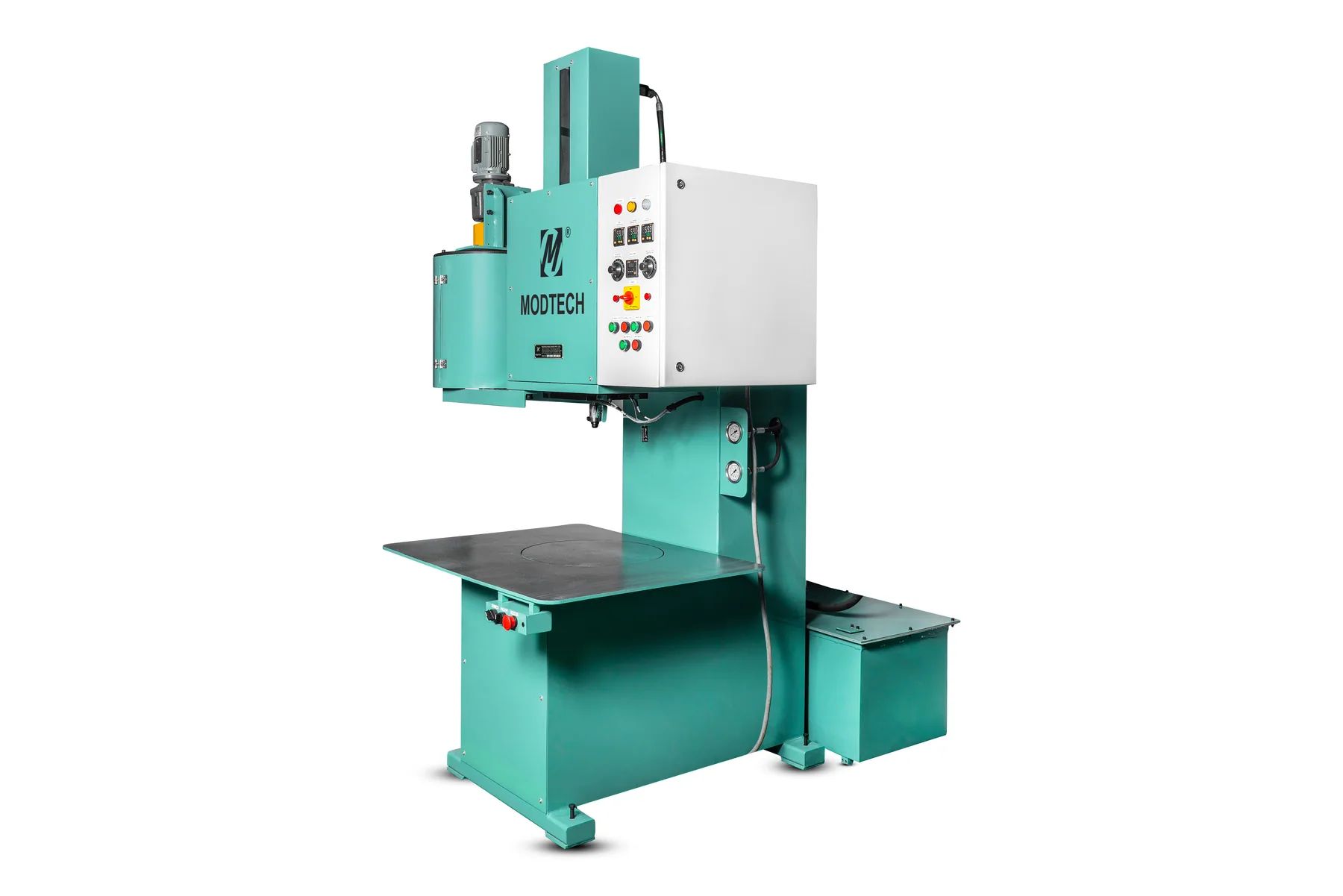

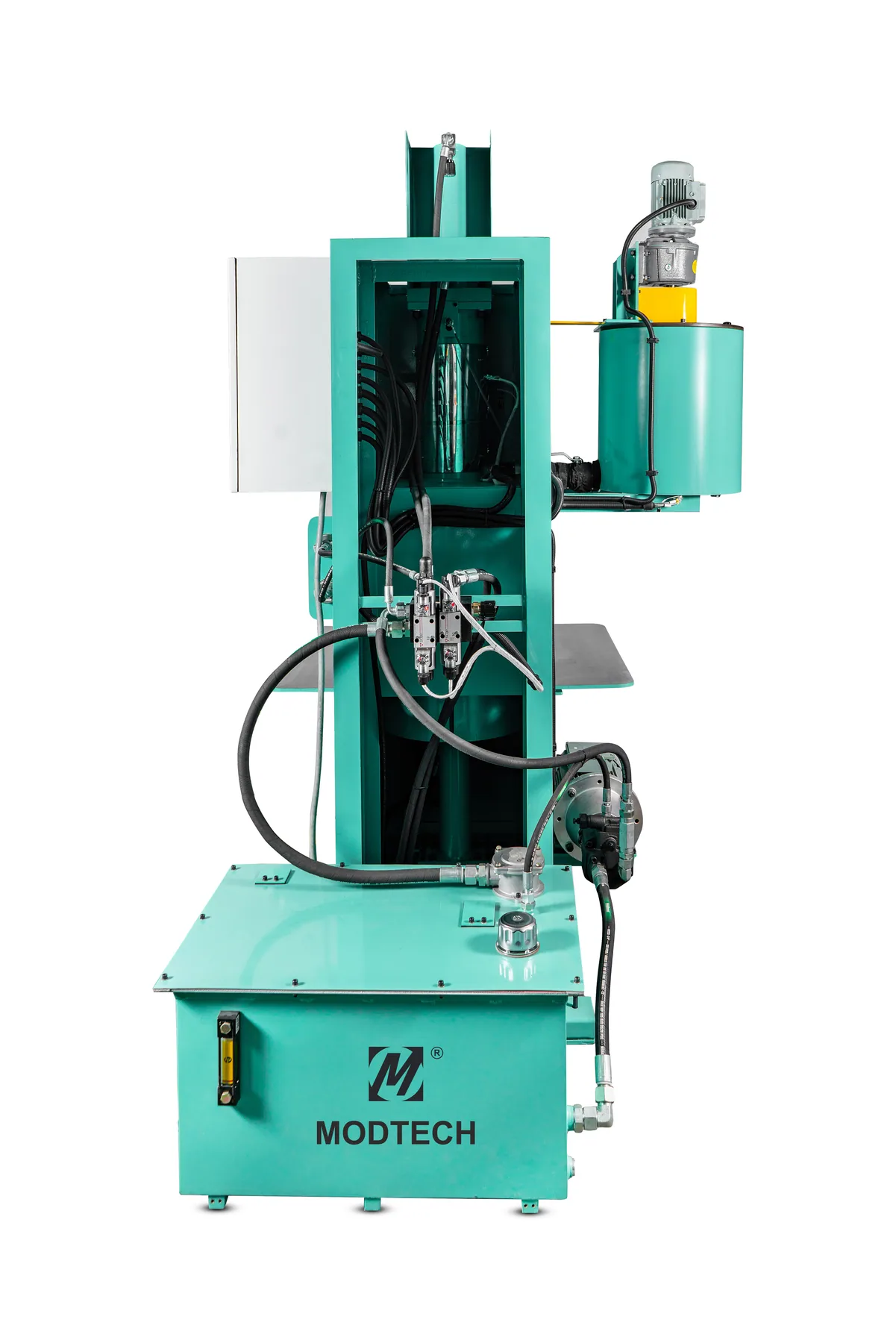

A manual wax injection machine designed for flexible, lower-volume pattern work, with an integrated wax preparation unit and straightforward operator controls.
Wax Injection Machines02 / Model range
Compare machines in this product family.
Each model is engineered around a different tooling envelope, production volume and automation requirement.
Wax Injection Machines
| Model / equipment | Primary specification | Control / configuration | Details |
|---|---|---|---|
 4-Pillar Wax InjectorWI.01 | Clamp force12T – 100T | Control7" / 15.6" HMI | View model |
 C-Frame Wax InjectorWI.02 | Clamp force12T – 100T | Control7" / 15.6" HMI | View model |
 Automode Wax InjectorWI.03 | Clamp force12T / 30T | Control15" touch screen | View model |
 IGT Wax Injector (up to 300T)WI.04 | Clamp forceUp to 300T | Clamp forceUp to 300T | View model |
 C-20 Wax Injection MachineWI.05 | ModelC-20 | ControlPLC + HMI | View model |
| Manual Wax Injection MachineWI.06 · Current model | OperationManual / operator controlled | ControlMachine-mounted panel | Selected |
03 / Key features
Built around the process.
Manual cycle control
Integrated wax preparation
Open working access
Service-friendly layout
04 / Applications
Where this machine fits.
Typical use cases for this platform. Tooling, handling and controls are engineered around the approved production requirement.
- Application 01Prototype patterns
- Application 02Short production runs
- Application 03Jobbing foundries
- Application 04Pattern development
05 / Technical specifications
Complete published machine details.
Compare published capacity, controls, utilities and available options in one structured view. The source status is shown below; final configuration is confirmed against the approved project datasheet.
Specification note: Published information is limited to the supplied machine photographs. Capacity, utilities, dimensions, weight and safety package are confirmed per project.
| No. | Technical parameter | Standard / published value |
|---|---|---|
| 01 | Operation | Manual / operator controlled |

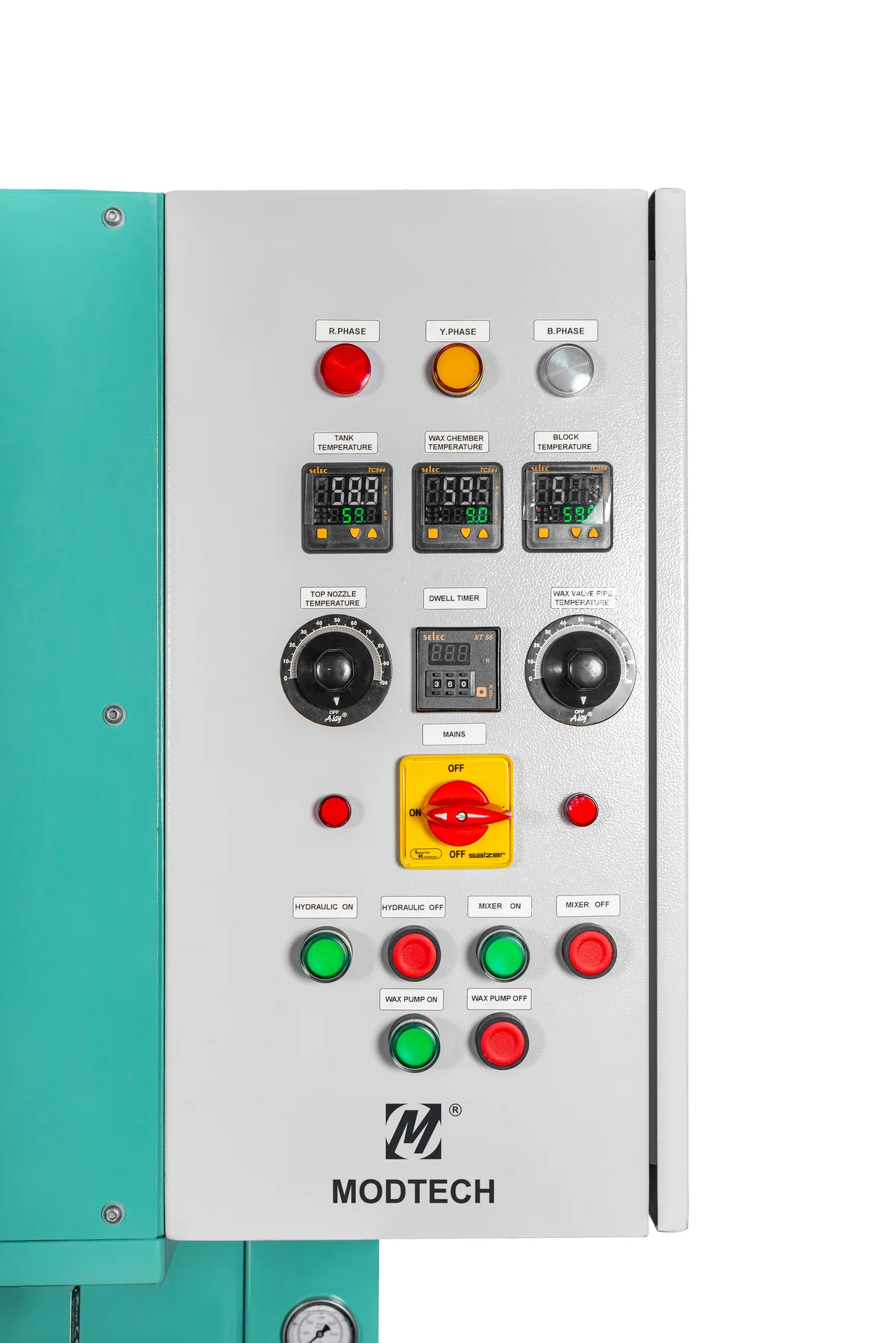

| 02 | Control | Machine-mounted panel |
| 03 | Wax supply | Integrated unit |
| 04 | Configuration | Application specific |
- 01Operation
- Manual / operator controlled
- 02Control
- Machine-mounted panel
- 03Wax supply
- Integrated unit
- 04Configuration
- Application specific
