Shell Knock-off Machine

Pneumatic shell breaking after casting.

Request a quote Talk to engineering

Maximum mould size: 700 H × 400 W × 400 D mm
Minimum mould size: 200 H × 150 W × 150 D mm
Maximum mould weight: 100 kg
Loading height: 780 mm

View 1 of Shell Knock-off Machine

01 / 02

Product mediaSelect a view

01 / Overview

Engineered for repeatable production.

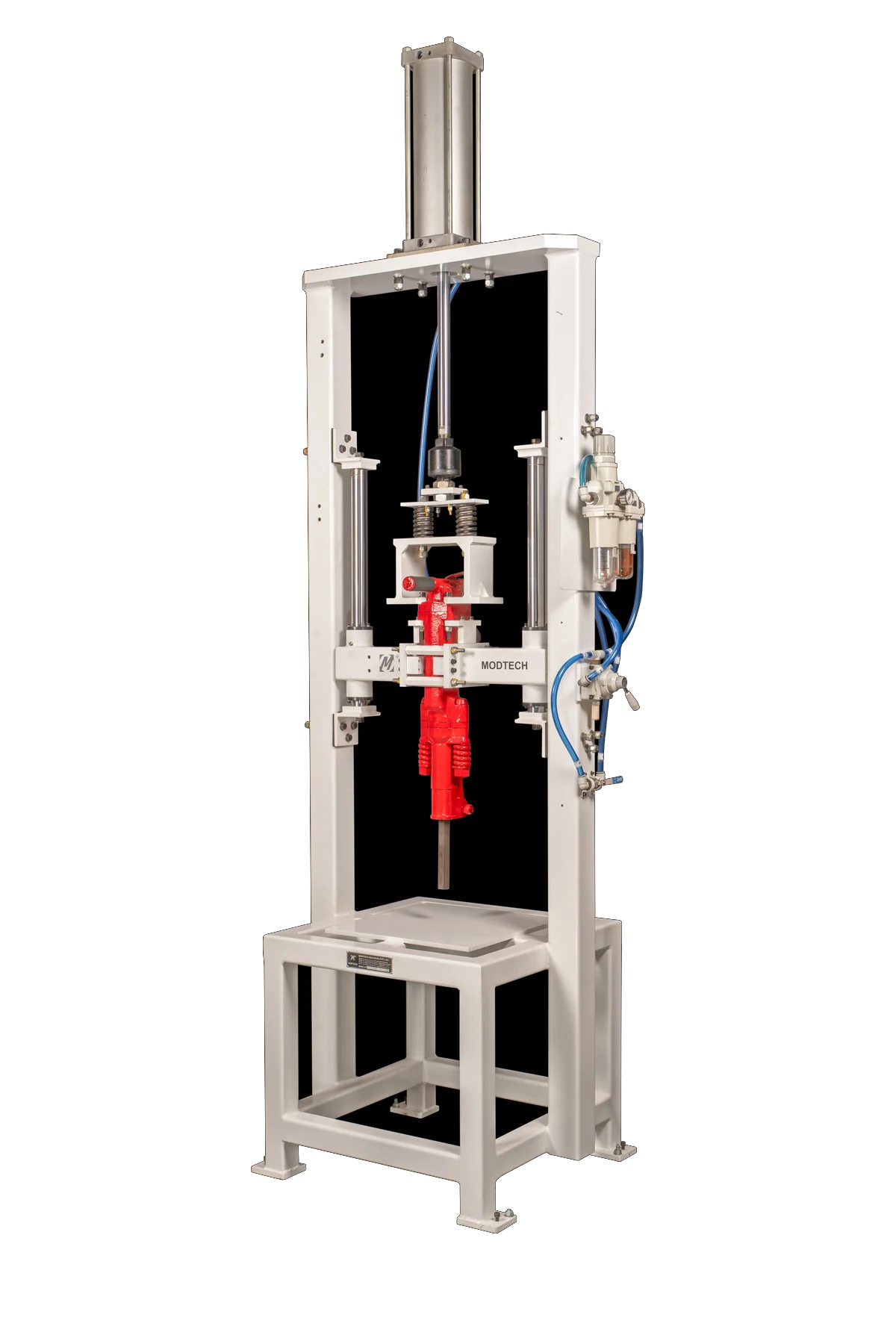

Enclosed vertical shell knock-off station with downward clamping, an adjustable pneumatic hammer and integrated dust extraction.

Fettling Equipment

02 / Product range

Explore equipment for this process stage.

Compare the available equipment and open any product for its detailed configuration.

Fettling Equipment

Model / equipment	Primary specification	Control / configuration	Details
Cut-off MachineFT.01	Abrasive blade600–750 mm	ControlInteractive HMI and PLC	View model
Shell Knock-off MachineFT.02 · Current model	Maximum mould size700 H × 400 W × 400 D mm	Maximum mould size700 H × 400 W × 400 D mm	Selected

Final model, utilities, tooling and safety package are confirmed against the approved project requirement.

03 / Key features

Built around the process.

Vertical chipping process

Downward mould clamping

Sound-deadened dual-skin cabinet

Double-glazed observation windows

Automatic knock-off sequence

Pneumatic-valve hammer adjustment

Integrated dust extraction

04 / Applications

Where this machine fits.

Typical use cases for this platform. Tooling, handling and controls are engineered around the approved production requirement.

Application 01Post-pour fettling
Application 02Shell de-coring

05 / Technical specifications

Complete published machine details.

Compare published capacity, controls, utilities and available options in one structured view. The source status is shown below; final configuration is confirmed against the approved project datasheet.

Verified source data

01
Models: 15
Parameters: 01
Data groups

Published technical details

Verified model data15 parameters

Official product page

01Published configuration

All model values shown below

Technical parameter	Model 01Published configuration
01Maximum mould size	700 H × 400 W × 400 D mm
02Minimum mould size	200 H × 150 W × 150 D mm
03Maximum mould weight	100 kg
04Loading height	780 mm
05Clamp cylinder stroke	500 mm
06Maximum clamp force	200 kg
07Hammer	Pneumatic · 1,000 BPM adjustable
08Dust extraction	Included
09Hammer count	1
10Cycle	Automatic
11Cabinet	Sound-deadened dual skin with observation windows
12Operating pressure	7 bar
13Pneumatic requirement	46 CFM
14Electrical load	1 kVA · 13 A · 380 V · 3 phase · 50 Hz
15Operational noise at 1 m	No more than 120 dBA

Maximum mould size

Published configuration: 700 H × 400 W × 400 D mm

Minimum mould size

Published configuration: 200 H × 150 W × 150 D mm

Maximum mould weight

Published configuration: 100 kg

Loading height

Published configuration: 780 mm

Clamp cylinder stroke

Published configuration: 500 mm

Maximum clamp force

Published configuration: 200 kg

Hammer

Published configuration: Pneumatic · 1,000 BPM adjustable

Dust extraction

Published configuration: Included

Hammer count

Published configuration: 1

Cycle

Published configuration: Automatic

Cabinet

Published configuration: Sound-deadened dual skin with observation windows

Operating pressure

Published configuration: 7 bar

Pneumatic requirement

Published configuration: 46 CFM

Electrical load

Published configuration: 1 kVA · 13 A · 380 V · 3 phase · 50 Hz

Operational noise at 1 m

Published configuration: No more than 120 dBA

Configuration note: These details are cross-checked against the published Modtech product page and supplied source documents. Final values and included features may change with the approved machine configuration; contact Modtech Sales for the project datasheet.
