RA.03Robotics3 models

Engineered around your process

Robotic Palletizing

Automatic pallet feeding, stacking and finished-stack output.

Request a quote Talk to engineering

Layout: Custom cell design
Feeding: Automatic pallet feeder
Control: Touchscreen control system
Formats: Multi-SKU and multi-line

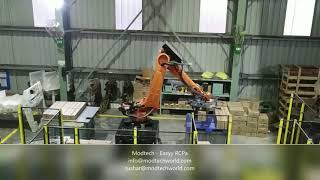

View 1 of Robotic Palletizing

01 / 04

Product mediaSelect a view

01 / Overview

Engineered for repeatable production.

A configurable palletizing system designed around product geometry, cycle time, plant layout and required pallet pattern.

End-of-Line Packaging

02 / System configurations

Explore systems for the complete production line.

Select a system to compare its process role, control platform and typical applications.

End-of-Line Packaging

Model / equipment	Primary specification	Control / configuration	Details
Robotic Case ErectorRA.01	Robot6-axis	ControlTouchscreen control system	View model
Robotic Case PackerRA.02	Robot6-axis, application selected	ControlTouchscreen recipes and diagnostics	View model
Robotic PalletizingRA.03 · Current model	LayoutCustom cell design	ControlTouchscreen control system	Selected

Final model, utilities, tooling and safety package are confirmed against the approved project requirement.

03 / Key features

Built around the process.

Fully automatic pallet feeding and stacking

Reduces repetitive lifting, injury and fatigue

Higher throughput and repeatable stack quality

Multiple SKUs and infeed lines

Configurable product pick quantity and pallet pattern

Very low maintenance

Industry 4.0-enabled monitoring

Interlocked guarding and custom gripper

Ethernet connectivity for remote support

04 / Applications

Where this machine fits.

Typical use cases for this platform. Tooling, handling and controls are engineered around the approved production requirement.

Application 01Cases
Application 02Bags
Application 03Tins
Application 04Bales & sacks

05 / Technical specifications

Complete published machine details.

Compare published capacity, controls, utilities and available options in one structured view. The source status is shown below; final configuration is confirmed against the approved project datasheet.

Project-specific values

Specification note: Robot payload and reach, pallet size, stack height, cycle rate, utilities and footprint are confirmed for the approved layout.

01
Models: 08
Parameters: 01
Data groups

Published technical details

Verified model data8 parameters

Official product page

01Published configuration

All model values shown below

Technical parameter	Model 01Published configuration
01Layout	Custom cell design
02Feeding	Automatic pallet feeder
03Control	Touchscreen control system
04Formats	Multi-SKU and multi-line
05Conveyors	Pallet and product infeed
06Stack pattern	Project configurable
07Safety	Interlocked guarding and doors
08Support	Ethernet enabled

Layout

Published configuration: Custom cell design

Feeding

Published configuration: Automatic pallet feeder

Control

Published configuration: Touchscreen control system

Formats

Published configuration: Multi-SKU and multi-line

Conveyors

Published configuration: Pallet and product infeed

Stack pattern

Published configuration: Project configurable

Safety

Published configuration: Interlocked guarding and doors

Support

Published configuration: Ethernet enabled

Configuration note: These details are cross-checked against the published Modtech product page and supplied source documents. Final values and included features may change with the approved machine configuration; contact Modtech Sales for the project datasheet.

Need the approved specification for your tooling and utilities?

Request datasheet
